Removing Cover For AWS Sensor On Left And Right

Information

Information

  1. Unscrew fastening screws -1-  and remove cover for AWS sensor -2-  in direction of arrow.

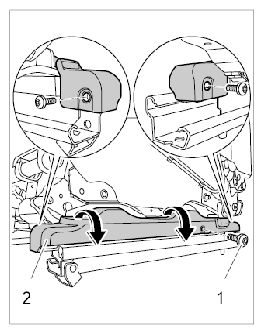

    Fig 1: Removing Cover For AWS Sensor
    G09829500Courtesy of PORSCHE CARS NORTH AMERICA, INC.
