Installing Frame For Seat Surface

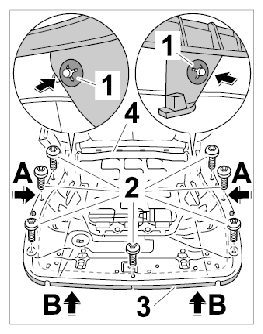

- Position frame for seat surface -3-
on the seat frame -4-
(-arrow A-
), press it upwards -arrow B-
and screw down the fastening screws -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Press in new retaining pins -1-
at the left and right.
