Removing Front Seat Frame

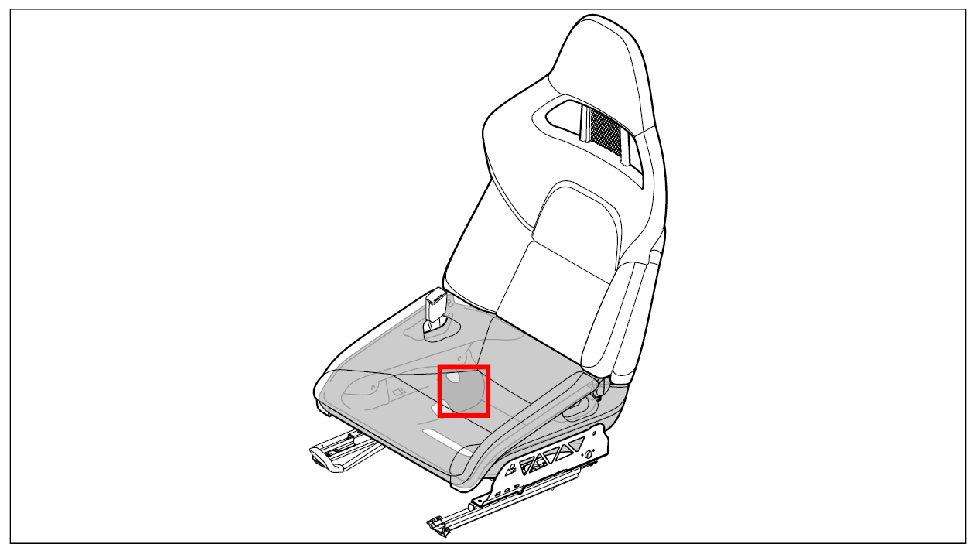

Fig 1: Identifying Front Seat Frame (Folding Sports Bucket Seat)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Two persons are needed to remove and install the backrest shell.

1. Unscrew fastening screws -1-  .

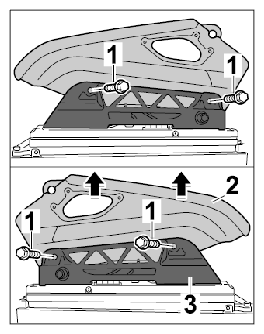

   Fig 2: Removing Seat Shell

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Lift seat shell -2-  up and remove it from the bracket -3-  (-arrows-  ).
