Removing Front Seat Frame (Bucket Seat)

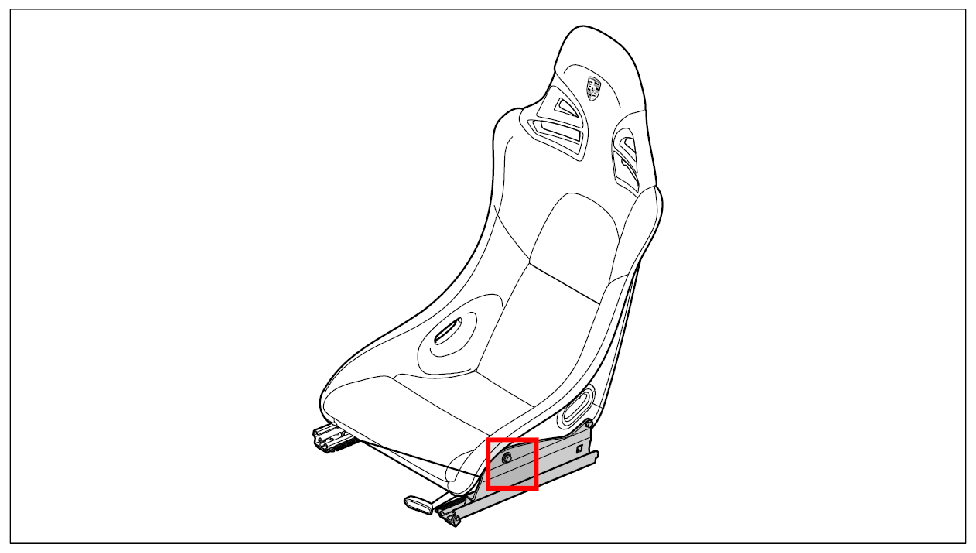

Fig 1: Identifying Installation Position Of Front Seat Frame

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Unscrew fastening screws -1-  on the left and right adapter -2-  .

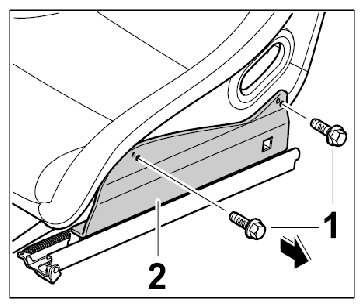

   Fig 2: Removing Seat Frame And Adapters

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Remove bucket seat from the adapters -2-  .
3. Unscrew fastening screws -1-  and remove both adapters -2-  from the seat frame -3-  .

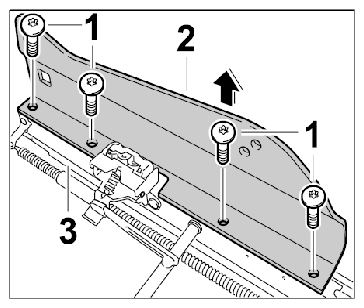

   Fig 3: Removing Seat Frame

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
