Installing Front Seat Frame (Bucket Seat)

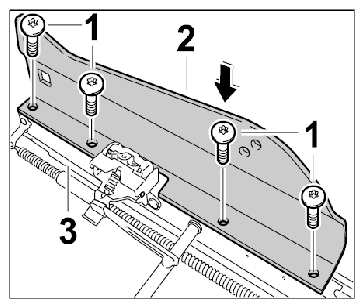

  1. Position both adapters -2-  on the seat frame -3-  and secure with the fastening screws -1-  . → Tightening torque: 24 Nm (18 ftlb.)+/-3 Nm (+/-2.0 ftlb.)
    Fig 1: Installing Seat Frame
    G09829490Courtesy of PORSCHE CARS NORTH AMERICA, INC.

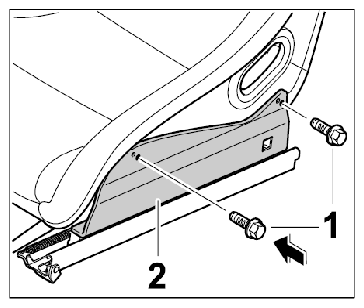

  2. Position bucket seat on the adapters -2-  and secure with the fastening screws -1-  . → Tightening torque: 24 Nm (18 ftlb.)+/-3 Nm (+/-2.0 ftlb.)
    Fig 2: Installing Seat Frame And Adapters
    G09829491Courtesy of PORSCHE CARS NORTH AMERICA, INC.
