Removing Front Seat Frame

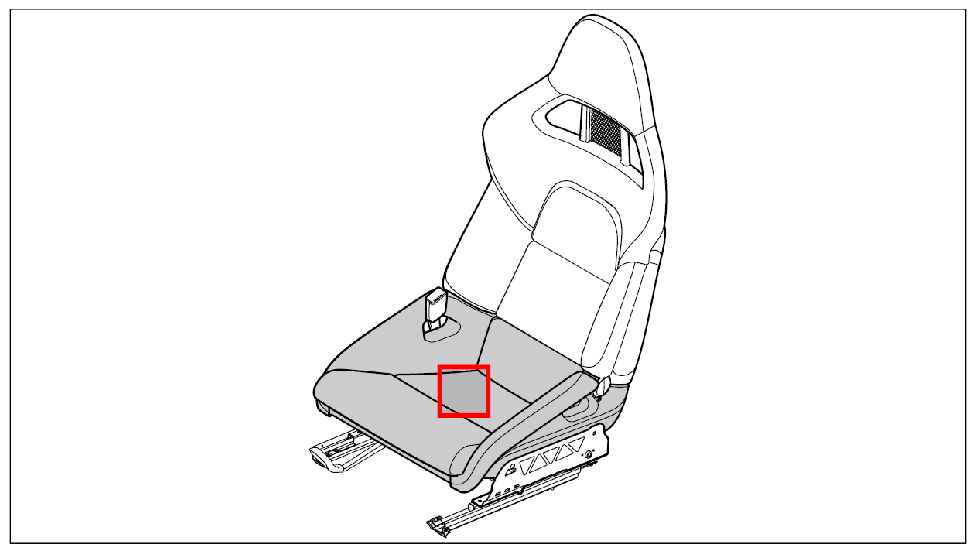

Fig 1: Identifying Front Seat Frame (Folding Sports Bucket Seat)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• Only for passenger seat in USA/Canada vehicles.

1. Remove wire harness for AWS.

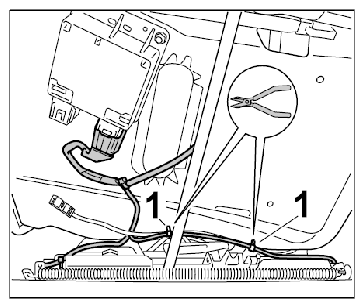

   1. 1.1. Remove tie-wraps -1-  on the seat shell at the left and right.
      Fig 2: Removing Wire Harness For AWS

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

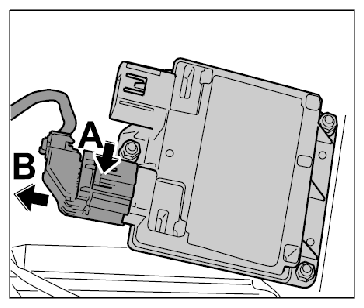

   2. 1.2. Release connector on AWS control unit -arrow A-  and pull it off -arrow B-  .
      Fig 3: Pulling Off Connector On AWS Control Unit

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   CAUTION: Risk of damage to seat shell from the brackets.

   • Risk of surface damage (scratches).

   → Mask the seat shell with adhesive tape.

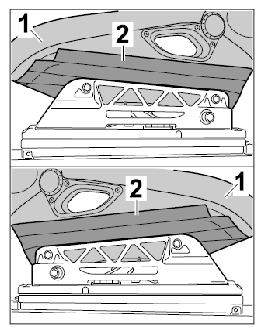

2. Mask the seat shell -1-  at the left and right in the marked area with adhesive tape -2-  (2-3 layers).
   Fig 4: Identifying Masking Seat Shell

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Two persons are needed to remove and install the backrest shell.

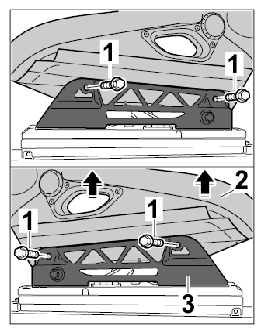

3. Unscrew fastening screws -1-  at the left and right.
   Fig 5: Removing Seat Shell

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Lift seat shell -2-  up and remove it from the bracket -3-  (-arrows-  ).
