Installing Front Seat Frame

Information

Two persons are needed to remove and install the backrest shell.

→ Always replace fastening screws on seat shell.

→ Never make alterations to the micro-self-locking screws (e.g. never use lubricant, loosen bolts, and screw them down again).

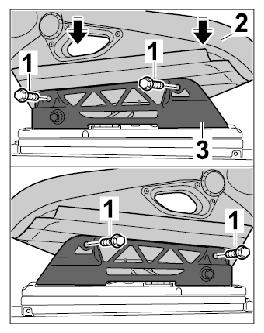

1. Position the seat shell -2-  on the bracket -3-  (-arrows-  ) and secure with the fastening screws -1-  at the left and right. → Tightening torque: 24 Nm (18 ftlb.)+3 Nm (+2 ftlb.)
   Fig 1: Installing Seat Shell

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • Only for passenger seat in USA/Canada vehicles.
2. Secure wire harness for AWS.

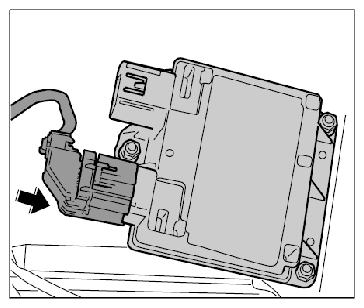

   1. 2.1. Connect connector to the AWS control unit -arrow-  until the connector engages securely.
      Fig 2: Connecting Connector On AWS Control Unit

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

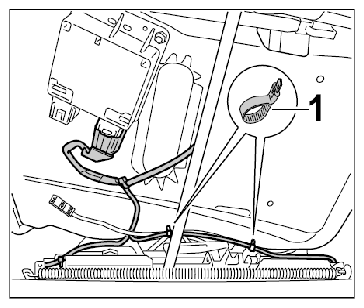

   2. 2.2. Secure wire harness for AWS to the seat shell at the left and right using new tie-wraps -1-  .
      Fig 3: Securing Wire Harness For AWS

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

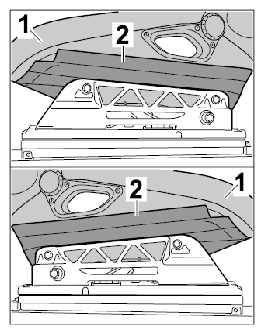

3. Remove adhesive tape -2-  on the seat shell -1-  at the left and right.
