Installing Seat Cushion (Bucket Seat)

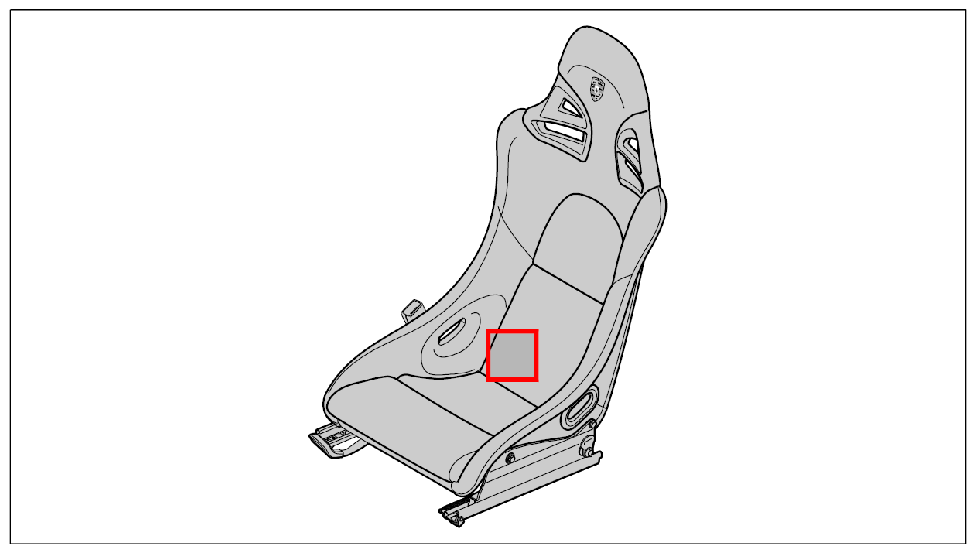

Fig 1: Overview Of Bucket Seat
G09829458Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Align seat cushion -1-  and press it on to the Velcro strips -2-  on the bucket seat.

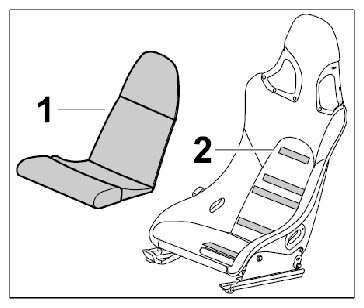

    Fig 2: Identifying Seat Cushion And Velcro Strips
    G09829459Courtesy of PORSCHE CARS NORTH AMERICA, INC.
