Removing Seat Rail Cover

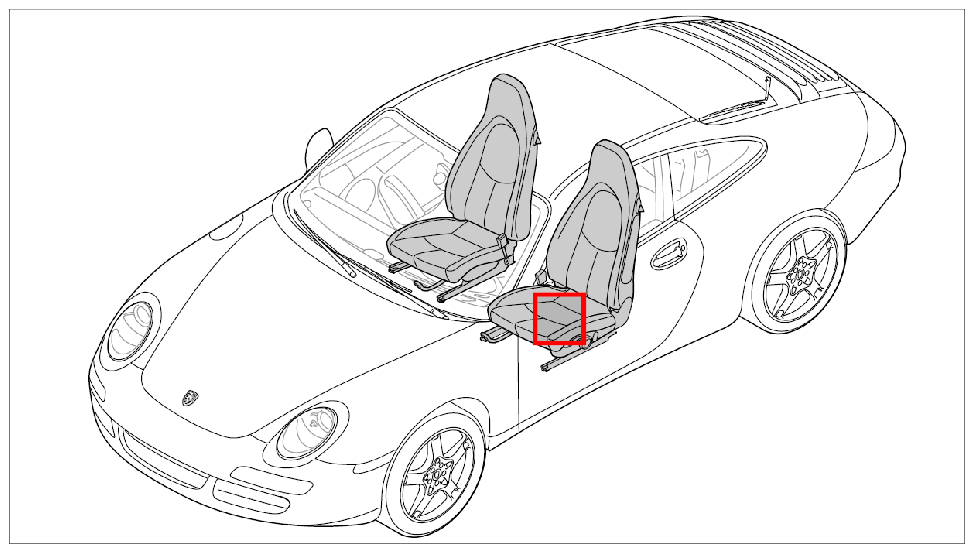

Fig 1: Overview Of Front Seat
G09829423Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

CAUTION: Locking lugs can break.
  1. Insert a screwdriver -1-  under the lugs and press upwards slightly -arrow A-  .

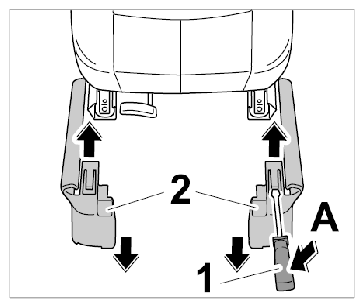

    Fig 2: Removing Seat Rail Cover
    G09829424Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Pull seat rail covers -2-  on right and left seat rails off in forward direction.
