Disconnecting The Electrical Plug Connection Of The AWS Control Module

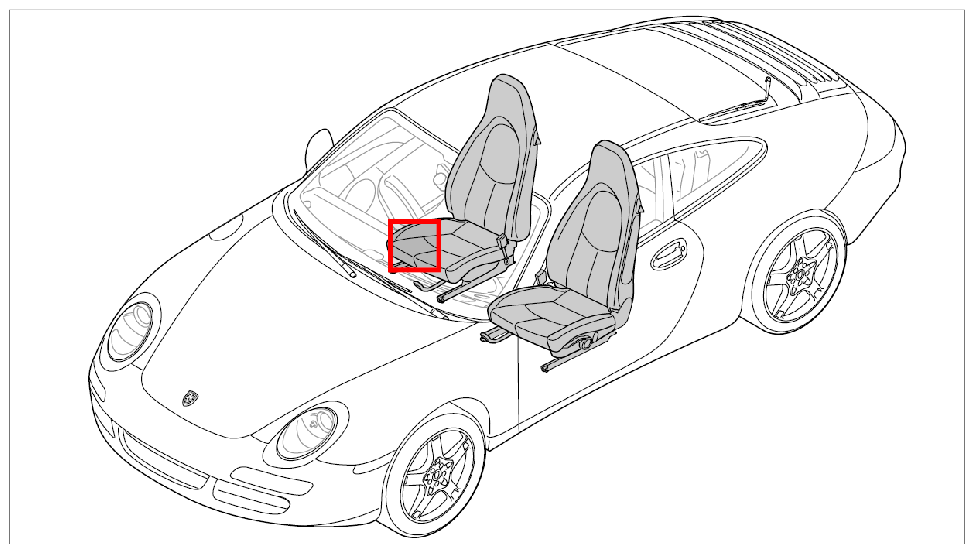

Fig 1: Overview Of Front Seat

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• Only for USA/Canada vehicles.

Information

• Passenger's seat only.

1. Release electric connector -1-  by pressing the lug -arrow a-  and pull off from control module.

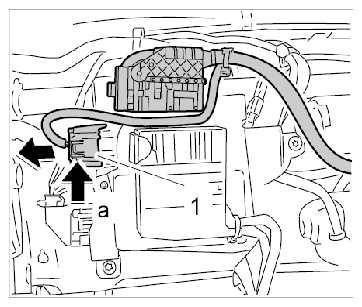

   Fig 2: Disconnecting Plug Connection Of AWS Control Module

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
