Disconnecting Electrical Plug Connection (Power Seat)

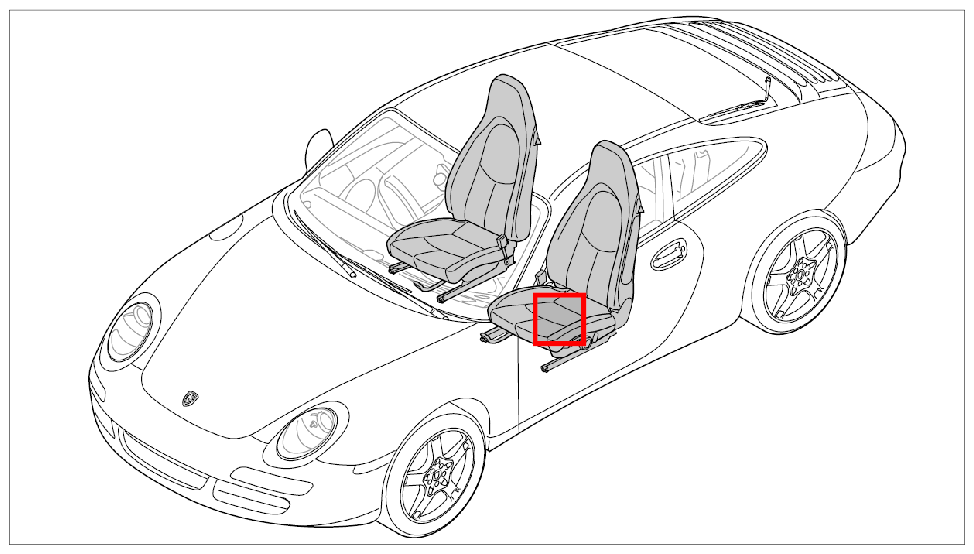

Fig 1: Overview Of Seat
G09829433Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only for vehicles with electrically adjustable seat

  1. Release electrical plug connection -1-  by activating the locking tab -arrow A-  and remove from seat memory control module -arrow B-  .

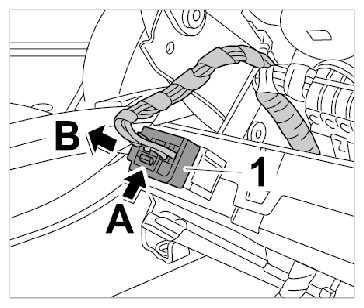

    Fig 2: Disconnecting Seat Memory Plug Connection
    G09829434Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove front seat.
