Disconnecting Central Plug

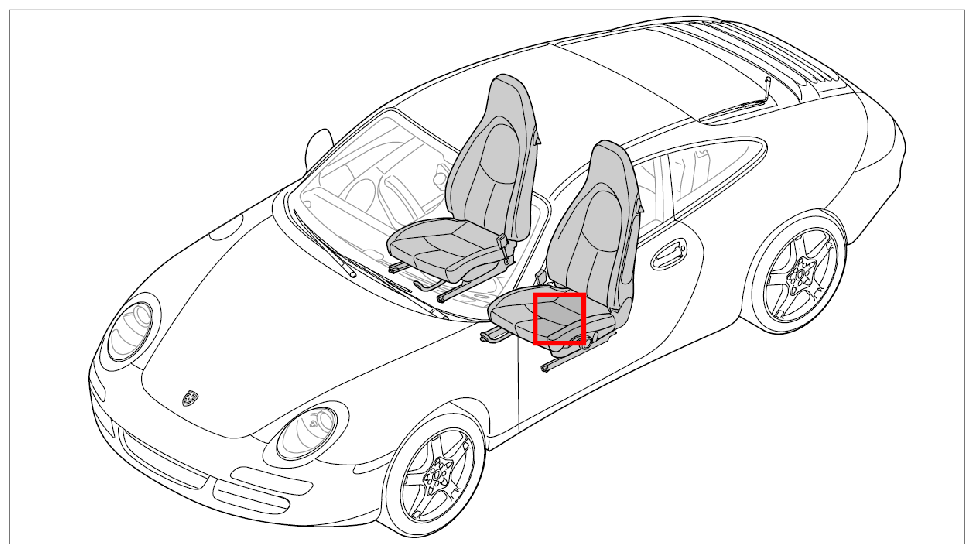

Fig 1: Overview Of Front Seat
G09829431Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Release plug connector locking device -1-  on the side -arrow A-  and separate the plug connection -2- -arrow B-  .

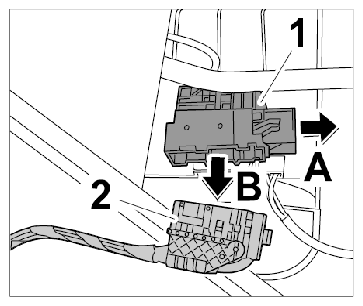

    Fig 2: Disconnecting Central Plug
    G09829432Courtesy of PORSCHE CARS NORTH AMERICA, INC.
