Tightening Seat Screws At Rear

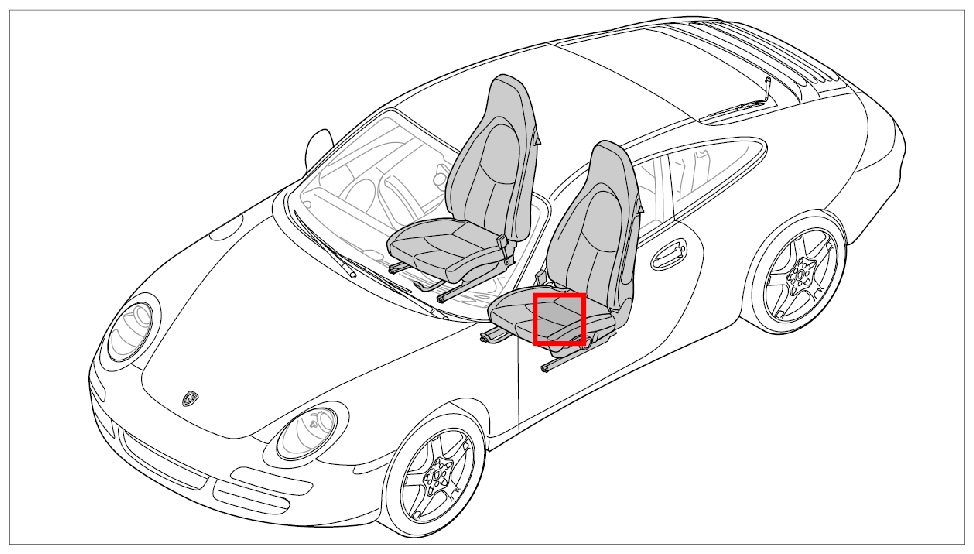

Fig 1: Overview Of Front Seat

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Always use new fastening screws and nuts following removal.

→ Observe specified tightening torques.

→ Carry out a visual inspection of all re-used parts.

1. Tip seat forwards and position seat rails on the seat baseframe.

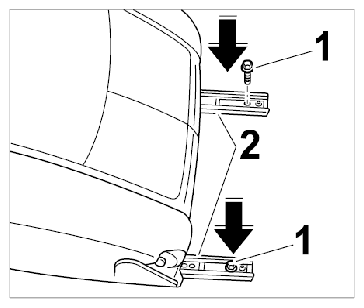

   Fig 2: Locating Seat Screws At Rear

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Screw left and right fastening screws -1-  into seat bracket -2-  and tighten to specified tightening torque → Microencapsulated: 50 Nm (37 ftlb.)  .
