Locking Central Plug

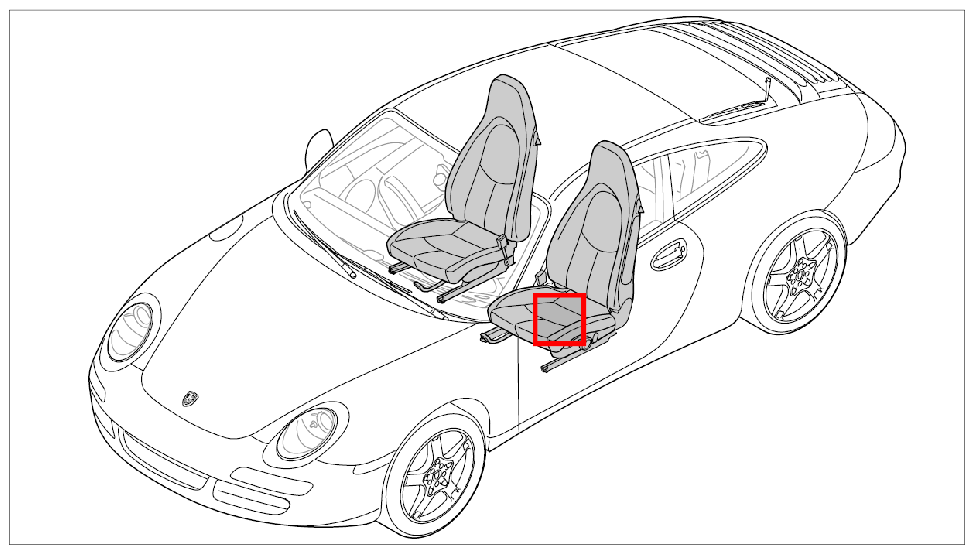

Fig 1: Overview Of Front Seat
G09829444Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Join the plug connection -1- -arrow A-  , press in plug connector locking device -2-  on the side -arrow B-  .

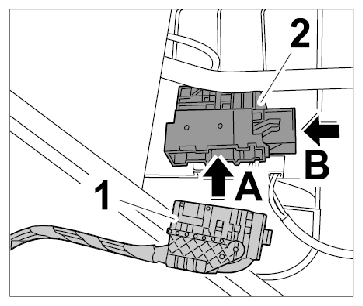

    Fig 2: Locking Central Plug
    G09829445Courtesy of PORSCHE CARS NORTH AMERICA, INC.
