Fit Seat Rail Cover

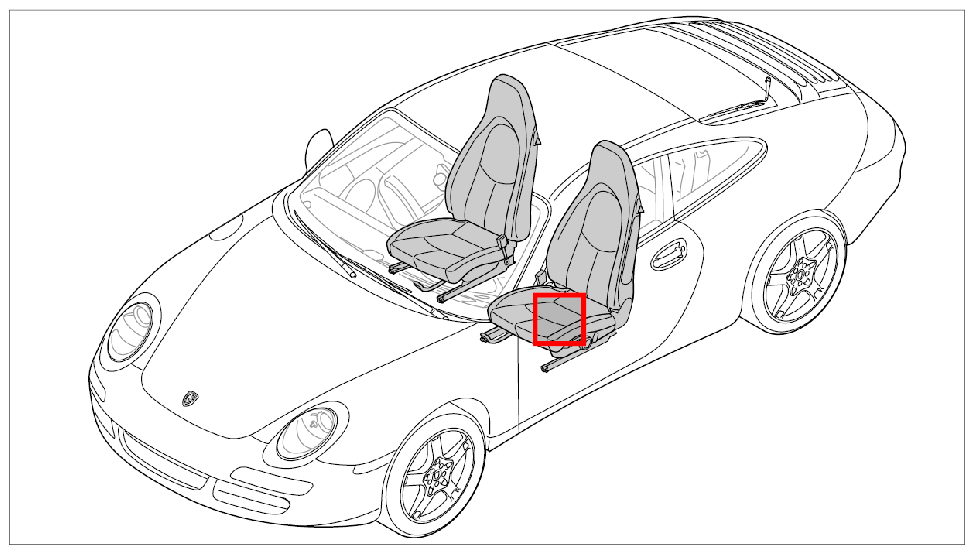

Fig 1: Overview Of Front Seat
G09829450Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Push seat rail cover -1-  into front end of the left and right seat rails -arrow A-  until the locking tab audibly engages -arrow B-  .

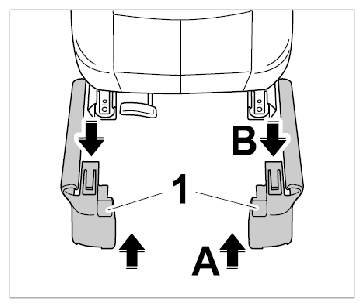

    Fig 2: Fitting Seat Rail Cover
    G09829451Courtesy of PORSCHE CARS NORTH AMERICA, INC.
