Fastening Electric Line

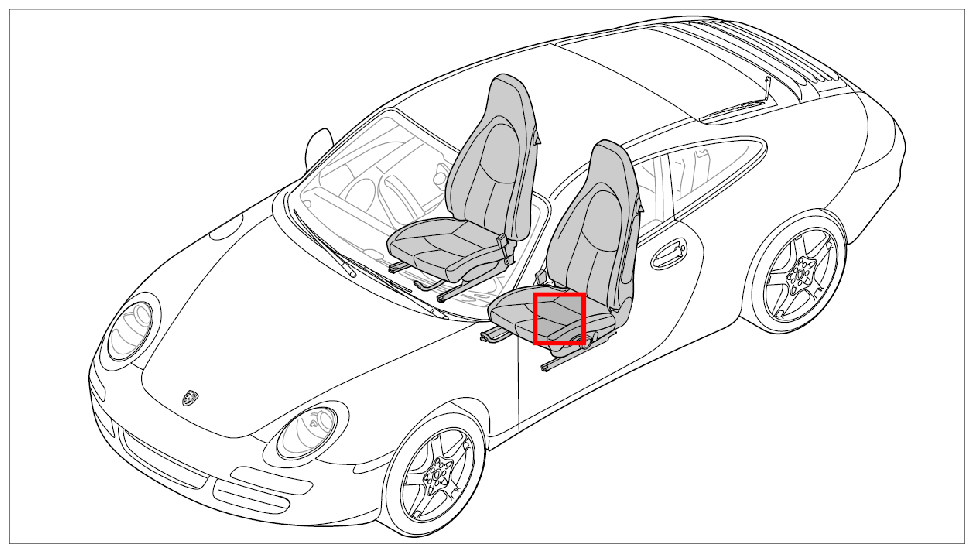

Fig 1: Overview Of Front Seat

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Avoid small bending radii when routing lines.

→ File down edges and burrs in the routing area or mask them with adhesive tape.

→ Maintain a sufficient distance from components exposed to high temperatures while driving.

Information

The routing of the wire harness for the control unit must be checked before installing the seat.

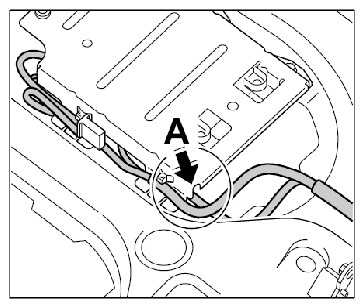

Fig 2: Routing Of Wire Harness

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

The wire harness must not be routed over the cover, but should be laid along side the cover -A-  .

Information

Before installing and securing the front seat, make sure the electric lines are not pinched or damaged.

1. Place front seat in car and tilt backwards.

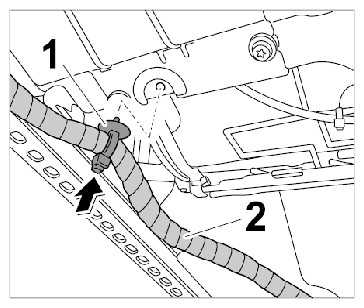

   Fig 3: Locating Fastening Electric Line

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Check tie-wrap -1-  , replace tie-wrap -1-  if necessary.
3. Clip wire harness -2-  into place.
