Removing Seat Rail Cover

Information

CAUTION: Locking lugs can break.
  1. Insert a screwdriver -1-  under the locking lugs and press upwards slightly -arrow A-  .
  2. Pull cover for left and right seat rail -2-  forward out of the seat rails.

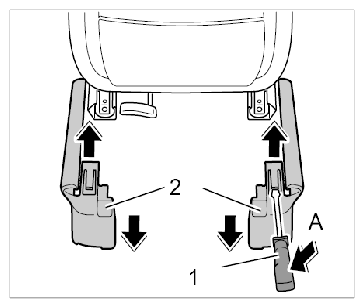

    Fig 1: Removing Seat Rail Cover
    G09829401Courtesy of PORSCHE CARS NORTH AMERICA, INC.
