Disconnecting Plug Connection On Bucket Seat

  1. Release the lock on the plug connection -1-  (-arrow A-  ) and pull off the connector -2-  (-arrow B-  ).

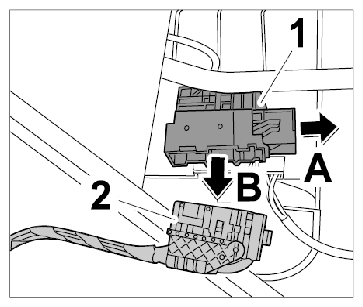

    Fig 1: Disconnecting Plug Connection
    G09829403Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove bucket seat.
