Locking Plug Connection On Bucket Seat

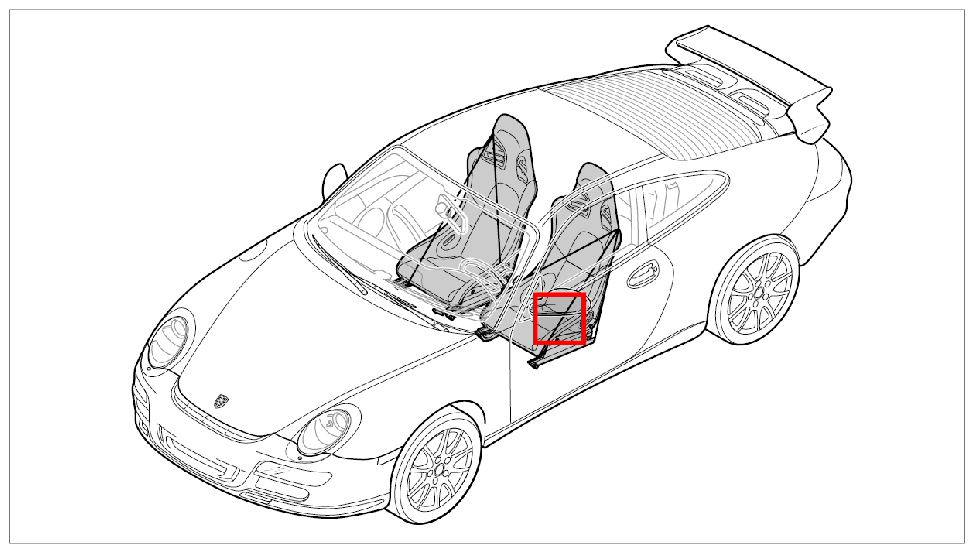

Fig 1: Overview Of Bucket Seat
G09829404Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Fit bucket seat into the vehicle and tilt it backwards.
  2. Insert the connector -1-  (-arrow A-  ) and lock the plug connection -2-  (-arrow B-  ).

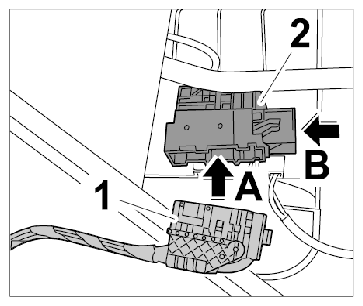

    Fig 2: Locking Plug Connection
    G09829405Courtesy of PORSCHE CARS NORTH AMERICA, INC.
