Installing Seat Rail Cover

  1. Insert cover for front seat rail at the left and right -1-  into the seat rails -arrow A-  until the locking lug clicks into place -arrow B-  .

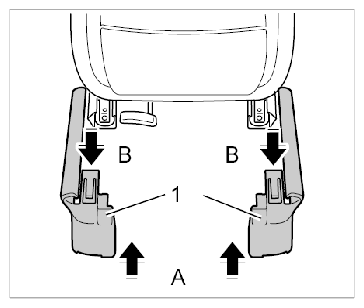

    Fig 1: Installing Seat Rail Cover
    G09829407Courtesy of PORSCHE CARS NORTH AMERICA, INC.
