Removing Slide/Tilt Sunroof Trim

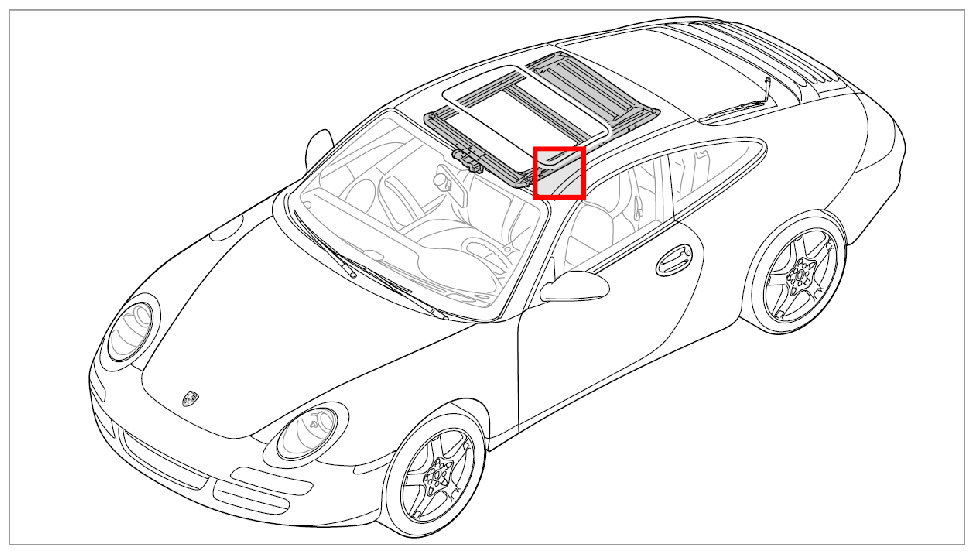

Fig 1: Identifying Slide/Tilt Sunroof Trim Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

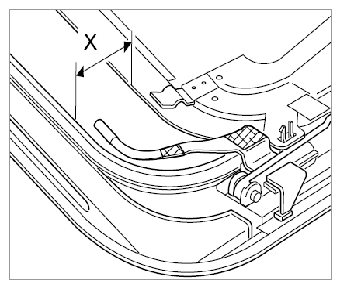

Position the slide/tilt sunroof trim -dimension X- approx. 80 mm in front of the roof edge cut-out.

Fig 2: Positioning Slide/Tilt Sunroof Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

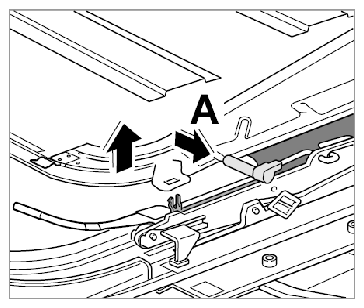

Disengage left and right inner side panels. Pull out the connector springs -A- on the gate and carefully pull the slide/tilt sunroof trim upwards.

Fig 3: Removing Slide/Tilt Sunroof Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
