Removing Rear Roof Trim Panel

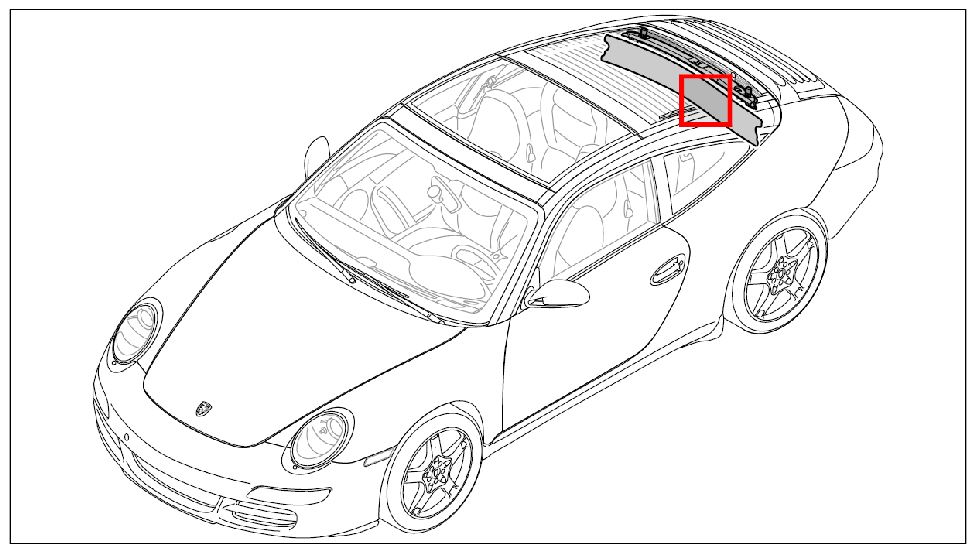

Fig 1: Identifying Rear Roof Trim Panel Installation Position
G09829384Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Hold the rear roof trim panel -1-  underneath at the sides and carefully pull it out of the clips in -direction of arrow-  .

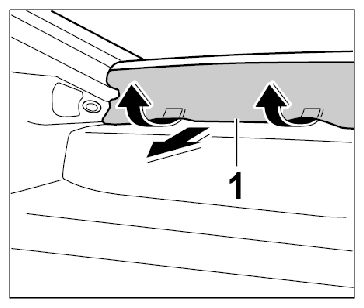

    Fig 2: Removing Rear Roof Trim Panel
    G09829385Courtesy of PORSCHE CARS NORTH AMERICA, INC.
