Removing Rear Roof Trim Panel

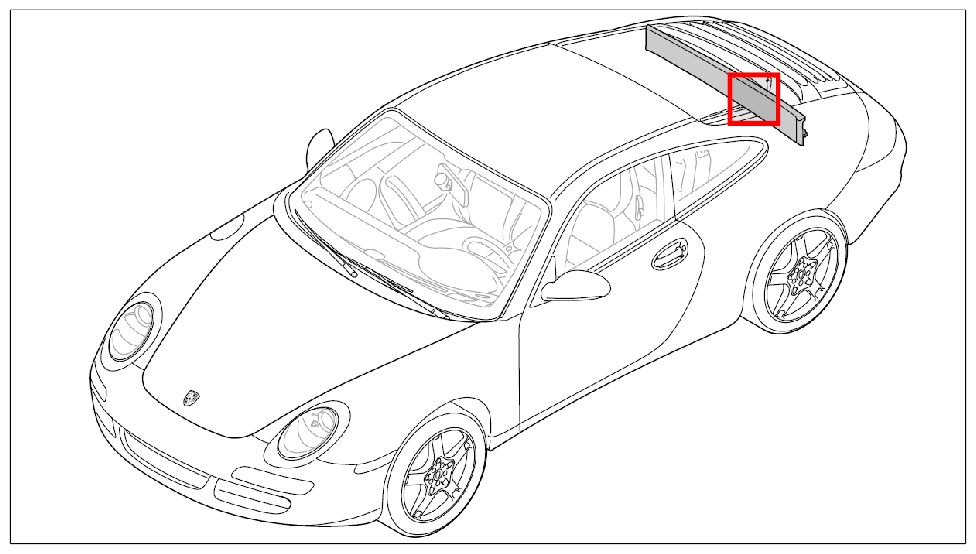

Fig 1: Identifying Rear Roof Trim Panel Installation Position
G09829380Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Grasp underneath the roof trim panel -1-  at the side and, pulling in -direction of arrow-  , carefully remove it from the cable clamps -2-  .

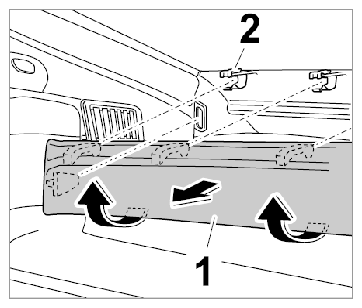

    Fig 2: Removing Rear Roof Trim Panel
    G09829381Courtesy of PORSCHE CARS NORTH AMERICA, INC.
