Installing Rear Roof Trim Panel

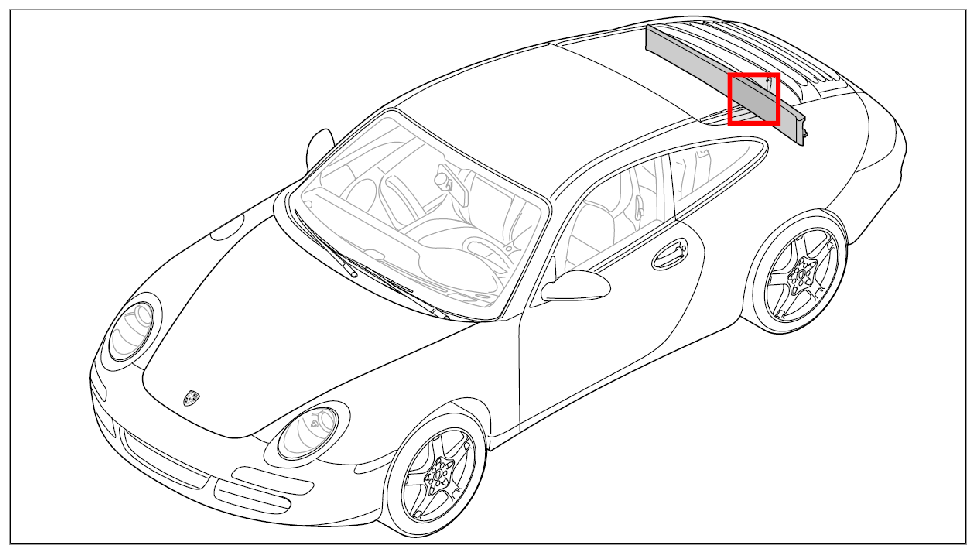

Fig 1: Identifying Rear Roof Trim Panel Installation Position
G09829382Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

If cable clamps are not replaced, this can cause noises in the roof trim panel when driving.

  2. Position roof trim panel -1-  and press into place in -direction of arrow-  ensuring that the pegs engage audibly in the cable clamps -2-  .
    Fig 2: Installing Rear Roof Trim Panel
    G09829383Courtesy of PORSCHE CARS NORTH AMERICA, INC.
