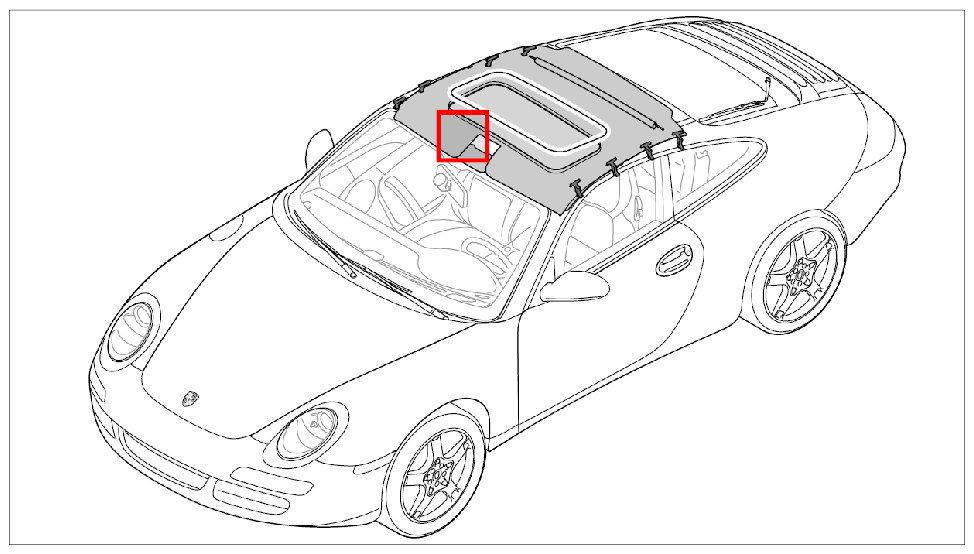

Removing Headliner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

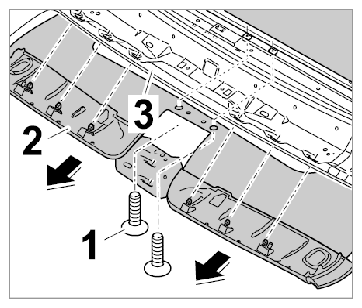

- Unscrew fastening screws -1-
at the front in the headliner -2-
and unclip the headliner from the cowl panel frame -3-
in a downward direction at the left and right.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

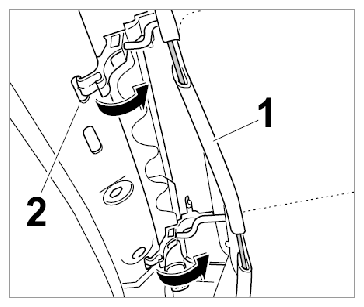

- Unclip the metal strut of the roof liner -1-
from the plastic clips -2-
at the right and left.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

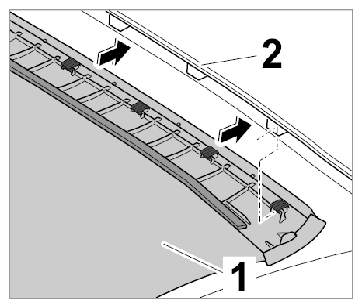

- Pull the rear headliner -1-
towards the rear out of the roof frame -2-
evenly on the left and right and disengage.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

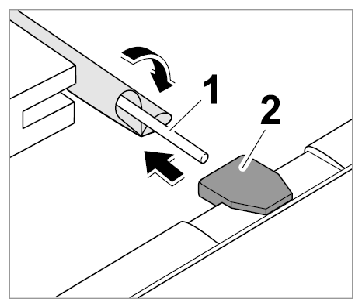

- Pull the metal brace contained in the fabric pocket -1-
down in the center so that it bends. Pull the metal strut -1-
out of the bracket -2-
on the left and right.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

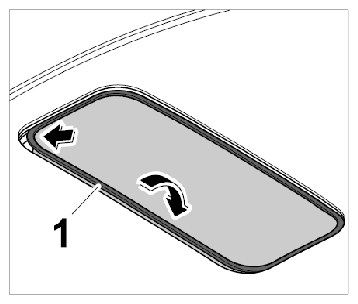

- Pull the frame of the sliding roof cut-out backwards and downwards in the center at the front, so that the frame overlap at the corners is reduced and it is possible to pull it out in a downward direction. Then pull out the roof frame -1-
diagonally via the sliding roof cut-out inwards into the passenger compartment.
