Disconnecting Electric Plug Connection

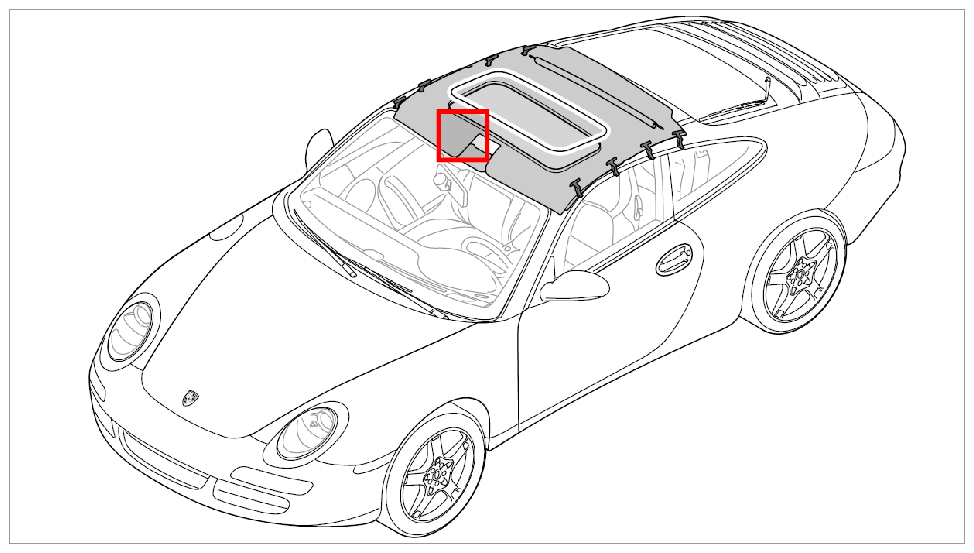

Fig 1: Identifying Headliner Installation Position
G09829356Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unclip plug connection for interior mirror -1-  from the support -arrow A-  and disconnect connector -arrows a-  .

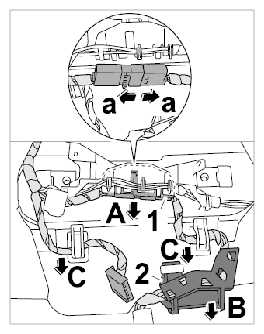

    Fig 2: Disconnecting Plug Connection
    G09829357Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unclip support for wire harness -2- -arrow B-  and disengage electric lines -arrows C-  .
