Locking Electric Plug Connection

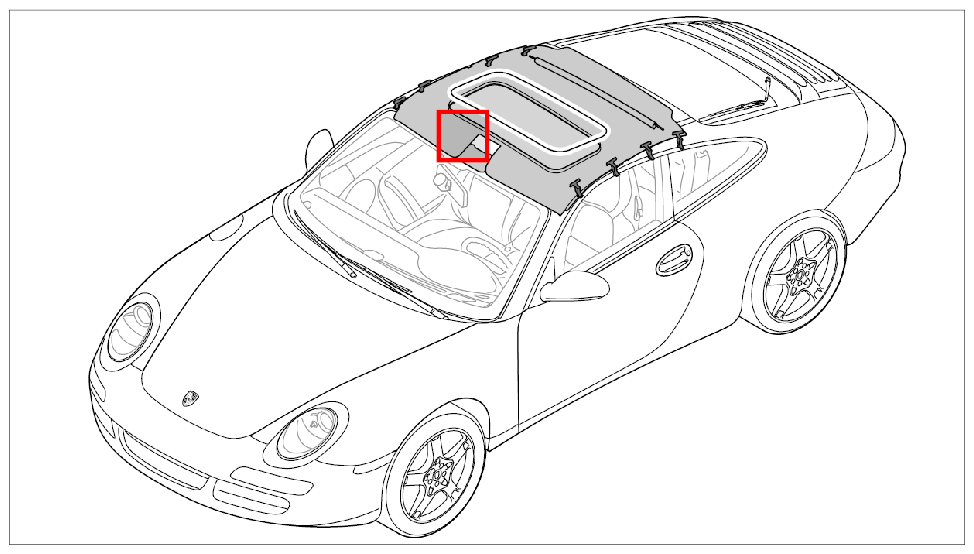

Fig 1: Identifying Headliner Installation Position
G09829375Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Engage electric lines -arrows A-  and clip in support for wire harness -2- -arrow B-  .

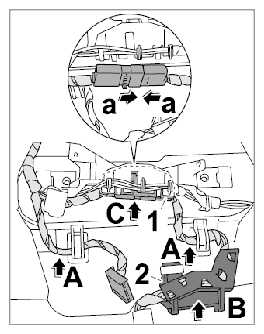

    Fig 2: Locking Plug Connections
    G09829376Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Connect electric plug connection for interior mirror -1- -arrows a-  and clip into the support -arrow C-  .
