Fitting Headliner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Before installing the headliner -1-
, carry out a visual inspection of the rear plastic lining -2-
to check that the Styrofoam cover -4-
and the self-adhesive fabric parts -3-
on the locking peg are completely seated.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

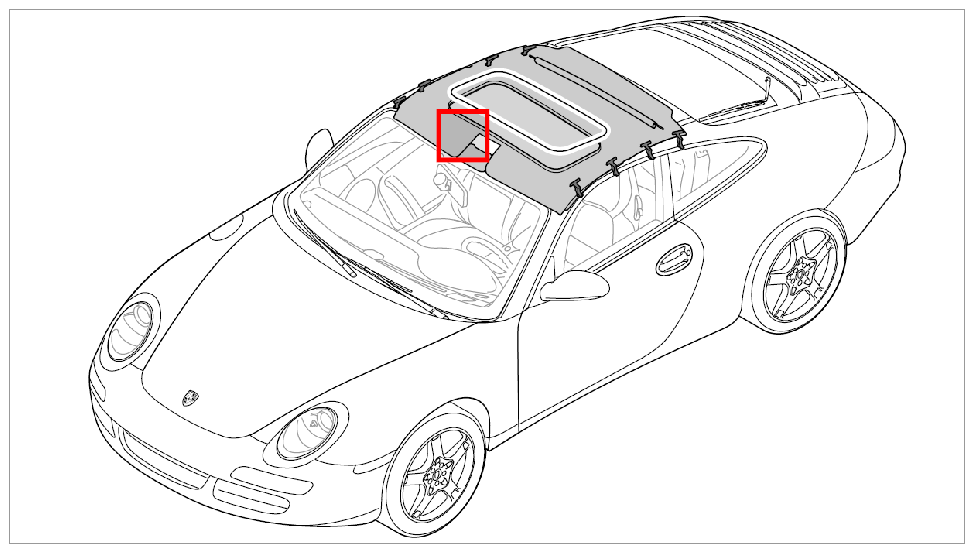

- Insert the roof frame -1-
diagonally from the inside via the sliding roof cut-out of the passenger compartment. At the same time, pull the frame backwards in the center at the front of the sliding roof cut-out, so that the frame overlap at the corners is reduced and it is possible to insert the frame into the sliding roof cut-out.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Pull the metal brace contained in the fabric pocket -1-
down in the center so that it bends. Engage the metal strut in the bracket -2-
on the left and right.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Engage the headliner towards the rear into the roof frame evenly on the left and right.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

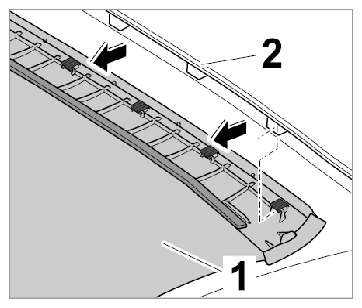

- Engage the metal strut of the roof liner -1-
in the plastic clips -2-
at the left and right.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

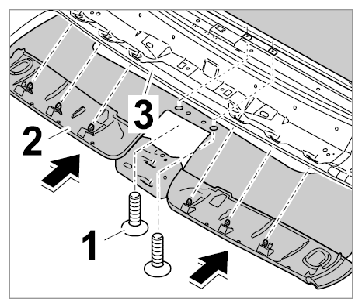

- Position the headliner -2-
at the left and right on the cowl panel frame -3-
and clip in. Tighten fastening screws -1-
.
