Installing Front Trim Panel

  1. Install front trim panel.
    1. 1.1. Position front trim panel -3-  (-Arrow-  ).
    2. 1.2. Connect connector for interior light -4-  (-Arrow-  ) until the connector engages securely.
    3. 1.3. Secure front trim panel -3-  with the fastening screws -2-  . → Tightening torque: 2.3 Nm (2.0 ft. lb.)
    4. 1.4. Clip covers -1-  into the front trim panel -3-  .

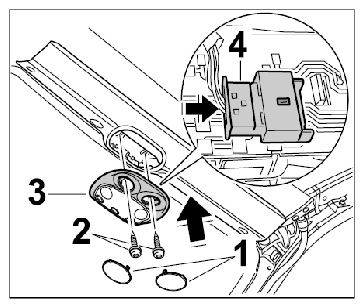

      Fig 1: Installing Front Trim Panel
      G09829342Courtesy of PORSCHE CARS NORTH AMERICA, INC.
