Removing Roof Rail Trim

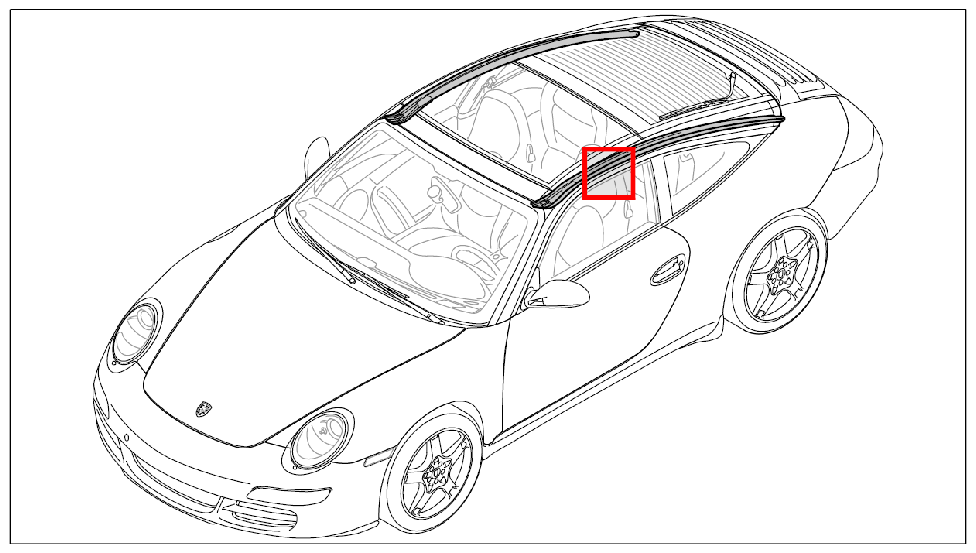

Fig 1: Identifying Roof Rail Trim Installation Position

G09829326

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Release roof rail trim close to the windscreen frame.
1. 1.1. Unscrew fastening screw -1- on cover -2- .
2. 1.2. Remove cover -2- from the roof rail trim -3- .

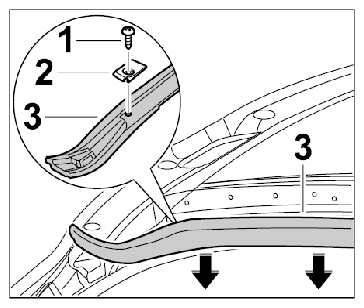

  Fig 2: Releasing Roof Rail Trim
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove roof rail trim.
1. 2.1. Unscrew fastening screw -1- on the metal clip -2- .
2. 2.2. Remove roof rail trim -3- by moving it inwards.

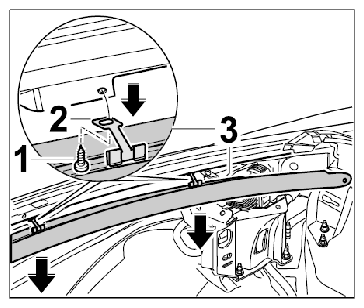

  Fig 3: Removing Roof Rail Trim
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
