Releasing Rear Belt Cover

  1. Insert a small screwdriver sideways into the cover -1-  and remove the cover.

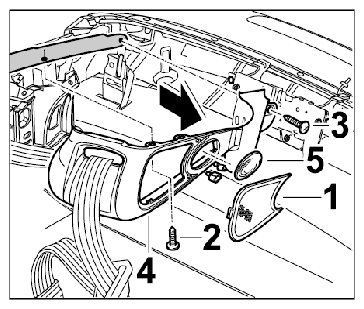

    Fig 1: Releasing Rear Belt Cover
    G09829325Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew fastening screws -2 and 3-  .
  3. Pull rear belt cover -4-  forward in direction of travel, pull connector off the interior light -5-  and set rear belt cover -4-  aside.
