Installing Roof Rail Trim: Notes

Install roof rail trim.
1. 1.1. Position roof rail trim -3- and secure it by screwing in fastening screws -1- through the metal clips -2- . → Tightening torque: 1.6 Nm (1.0 ft. lb.)

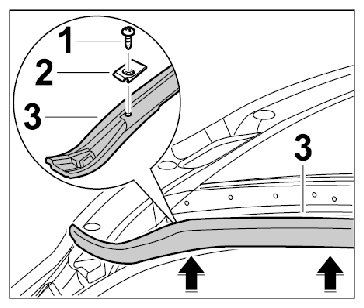

  Fig 1: Installing Roof Rail Trim
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure roof rail trim close to the windscreen frame.
1. 2.1. Position cover -2 - on the roof rail trim -3- and secure with the fastening screw -1- . → Tightening torque: 1.6 Nm (1.0 ft. lb.)

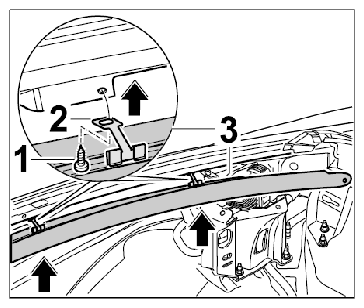

  Fig 2: Securing Roof Rail Trim
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
