Removing Rear Cover

Information

The rear cover will be irreparably damaged during removal and must be replaced.

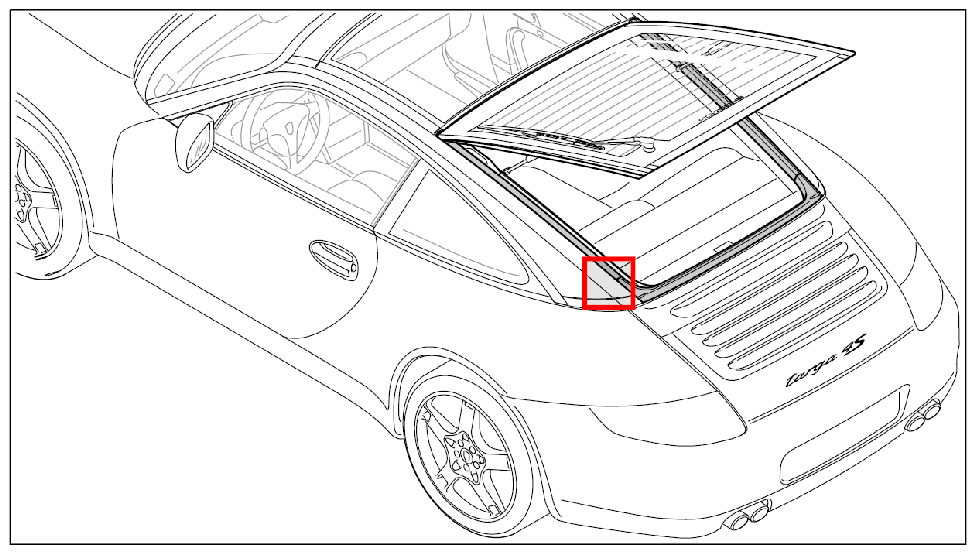

Fig 1: Identifying Rear Cover Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Remove rear cover at the left and right.
   1. 1.1. Open rear window cover.
   2. 1.2. Pull of rear cover at the left and right -1-  .

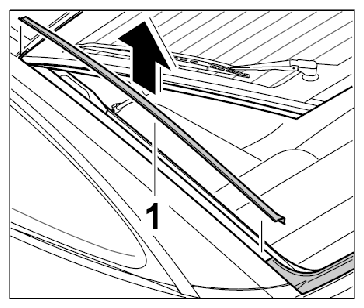

      Fig 2: Removing Rear Cover At Left And Right

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Remove rear cover in the middle.
   1. 2.1. Pull off rear cover in the middle -2-  .

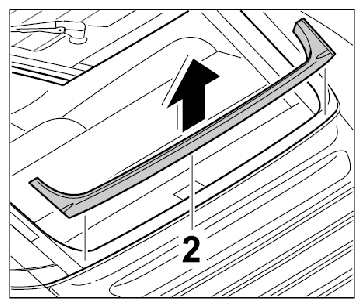

      Fig 3: Removing Rear Cover In Middle

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
