Installing Padding (Bucket Seat)

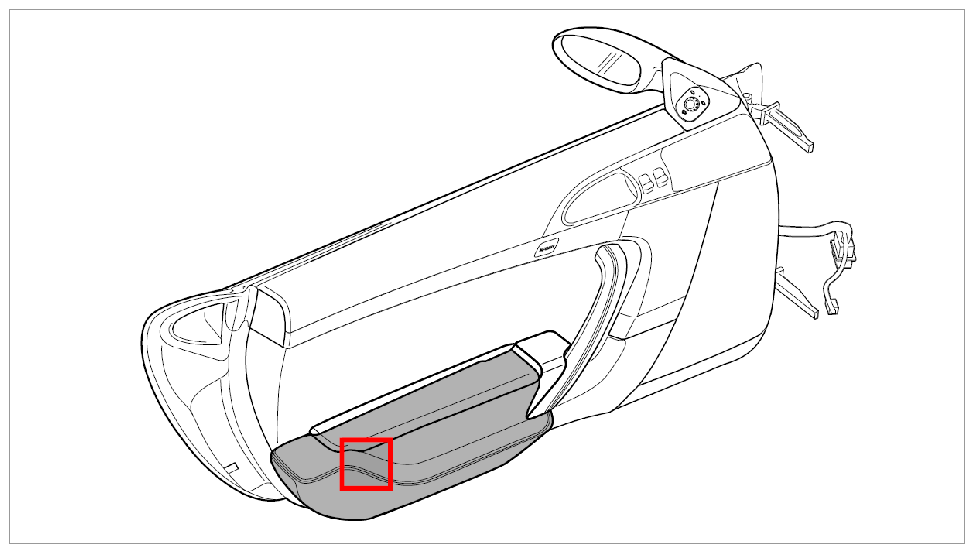

Fig 1: Identifying Padding Installation Position
G09829304Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Position padding -2-  on the door trim panel and secure with fastening screws -1-  . → Tightening torque: 1.6 Nm (1.0 ft. lb.) +/-0.5 Nm (+/-0.5 ft. lb.)

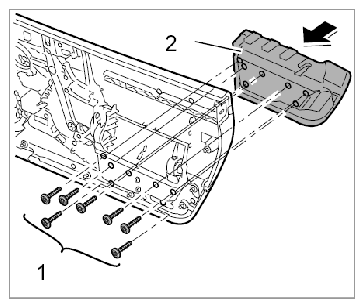

    Fig 2: Installing Padding
    G09829305Courtesy of PORSCHE CARS NORTH AMERICA, INC.
