Installing C-Pillar Trim Panel

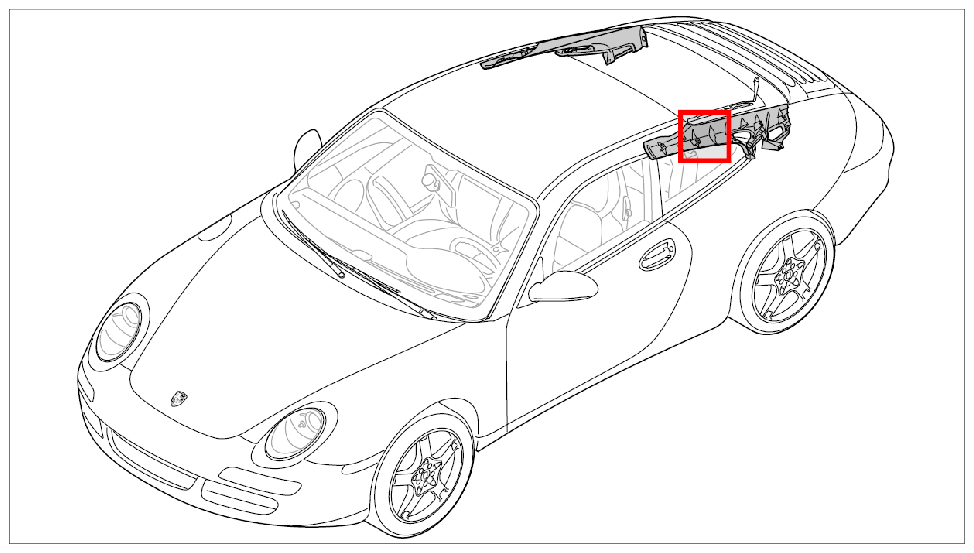

Fig 1: Identifying C-Pillar Trim Panel Installation Position
G09829295Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Check sheetmetal clips -3-  , replacing if necessary.
    Fig 2: Installing C-Pillar Trim
    G09829296Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Thread seat belt with mounting component -2-  through the C-pillar trim panel -1- -Arrow A-  .
  3. Position C-pillar trim panel -1-  on the C-pillar and clip in.
