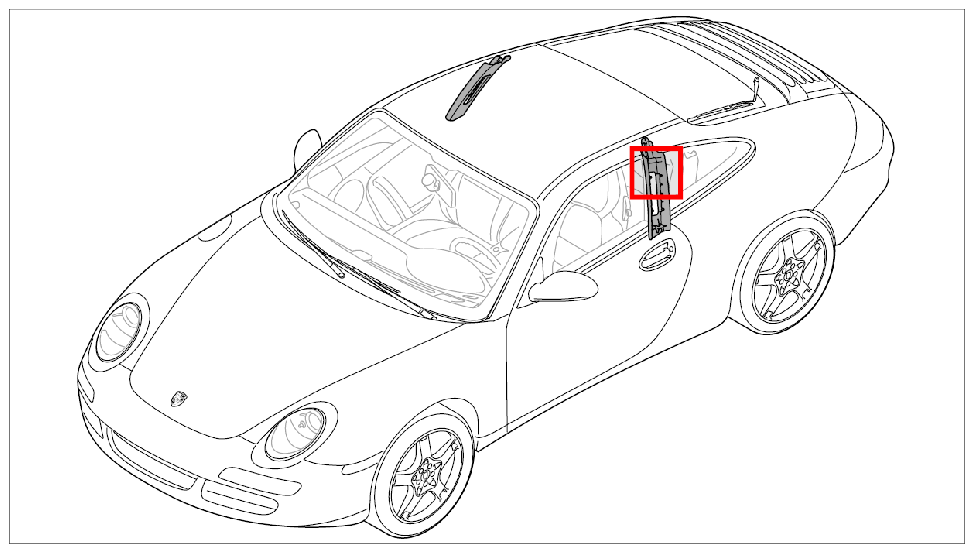

Removing B-pillar trim panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

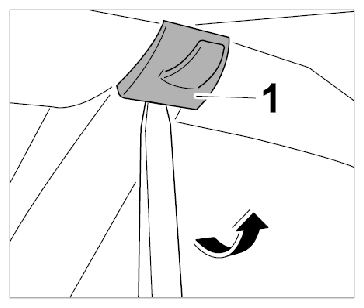

- Lift up coat hook bracket -1-
from below with a plastic spatula -arrow-
and carefully pull up and off.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

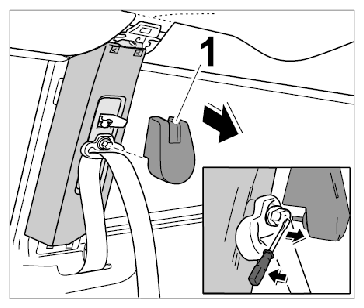

- Press seat belt height adjuster actuator -1-
out of the fastening screw using a screwdriver.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

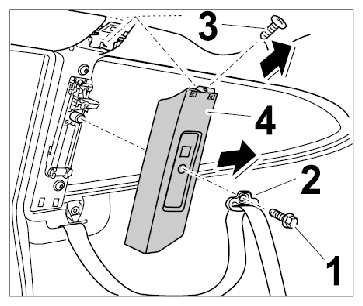

- Unscrew fastening screw -1-
from sash guide mount -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Unscrew fastening screw -3-
. Lift B-pillar trim -4-
up and out.
