Installing B-Pillar Trim Panel

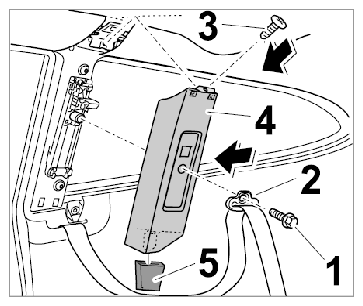

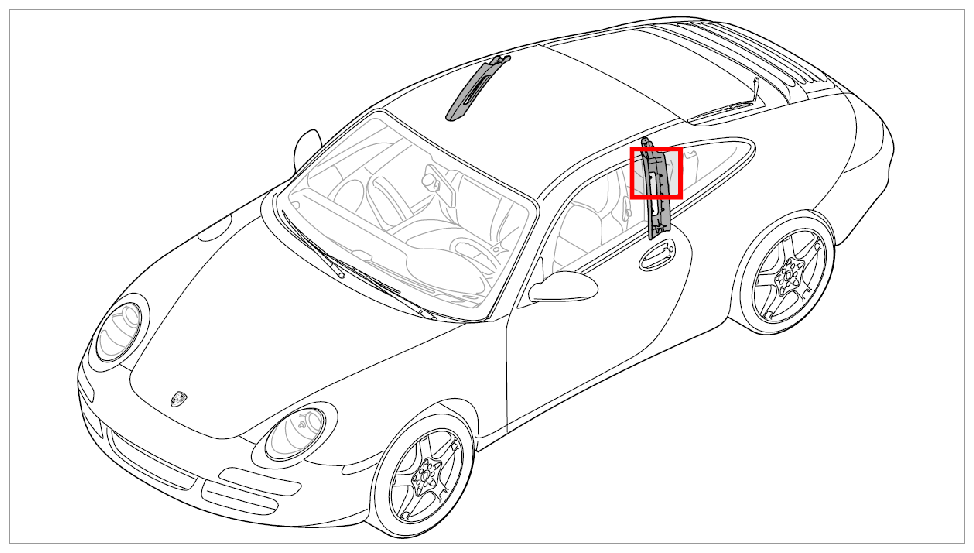

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Push grommet -5-
onto lug of the B-pillar trim panel -4-
and insert in bottom of the B-pillar.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Screw down B-pillar trim panel -4-
with fastening screw -3-
.
- Position sash-guide mount -2-
on the B-pillar and tighten with fastening screw -1-
. Tightening torque → Tightening torque: 37 ft. lb.

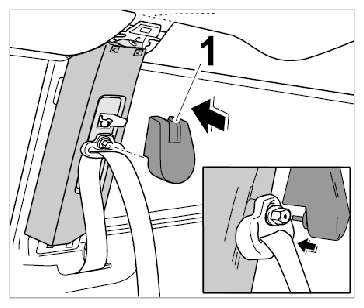

- Press peg of the seat beat height adjuster actuator -1-
into the bore of the fastening screw.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Check sheetmetal clips -2-
, replacing if necessary.

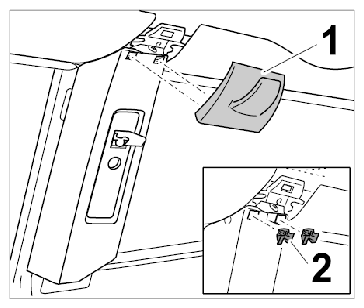

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Carefully press coat hook bracket -1-
into the sheetmetal clips -2-
at the bottom of the B-pillar trim panel.
