Installing Handle (Bucket Seat)

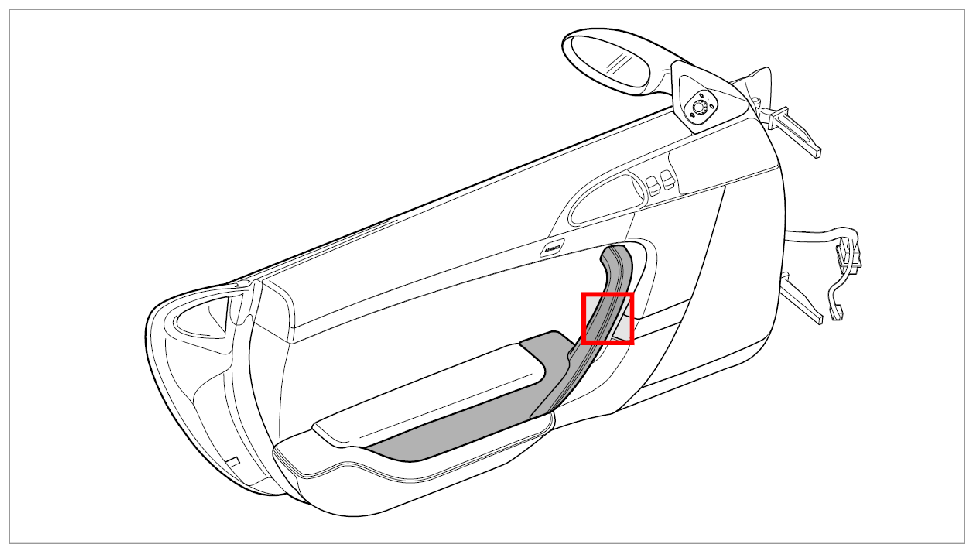

Fig 1: Identifying Handle Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Insert handle -1- into the cover -2- (-Arrow A- ) and press it into the retaining clip -3- on the cover -2- (-Arrow B- ).

Fig 2: Clipping In Cover On Handle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The guide pin on the handle must be inserted into the mounting point -Arrow- on the door trim panel.
Insert handle -1- into the door trim panel and secure with the fastening screws -2- .

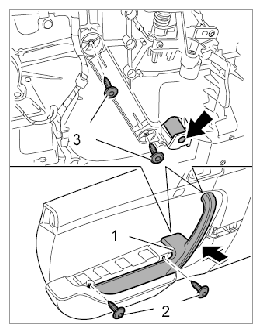

Fig 3: Installing Handle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in fastening screws -3- on the back of the door trim panel. → Tightening torque: 7 Nm (5.0 ft. lb.)
