WM 705719 Removing And Installing A-Pillar Trim Panel (TARGA 4 & TARGA 4S)
>>
Removing A-Pillar Trim Panel
>>
Notes
Removing A-Pillar Trim Panel: Notes

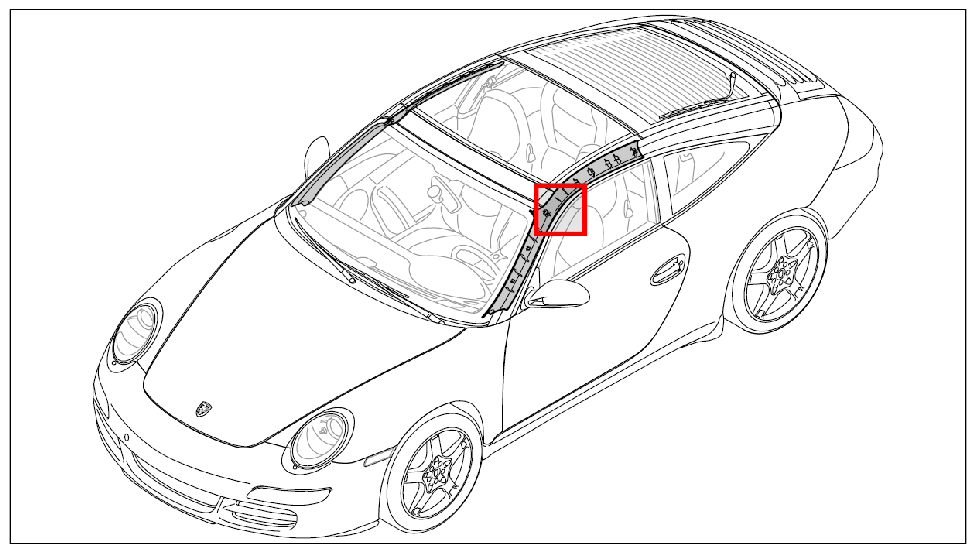

Fig 1: Identifying A-Pillar Trim Panel Installation Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip A-pillar trim panel
-1-
along the roof frame and windscreen frame and remove it by pulling it inwards.

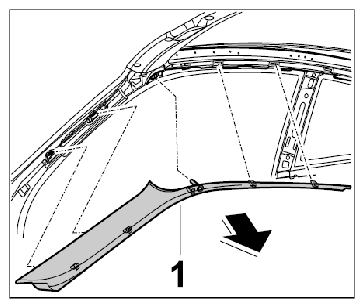

Fig 2: Removing A-Pillar Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
