Installing A-Pillar Trim Panel

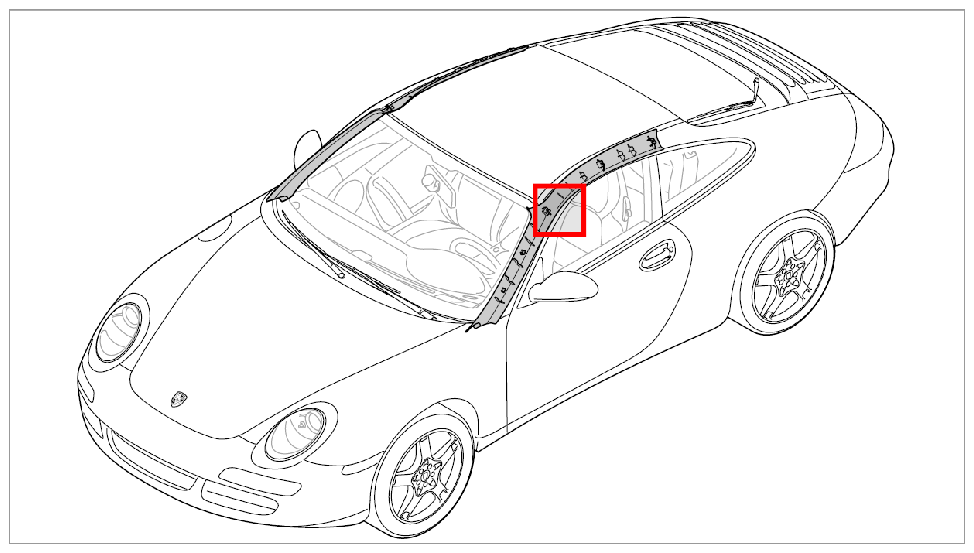

Fig 1: Identifying A-Pillar Trim Panel Installation Position
G09829208Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Check sheetmetal clips -2-  , replacing if necessary.
    Fig 2: Installing A-Pillar Trim Panel
    G09829209Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Ensure that deformation element is seated correctly before installation.

  2. Insert the A-pillar trim panel -1-  at side of windscreen frame (transition to dashboard) and clip it in along the roof frame.
