WM 705319 Removing And Installing Rear Cover (All Models)
>>
Removing Rear Cover
Removing Rear Cover
Removing trim for the rear.

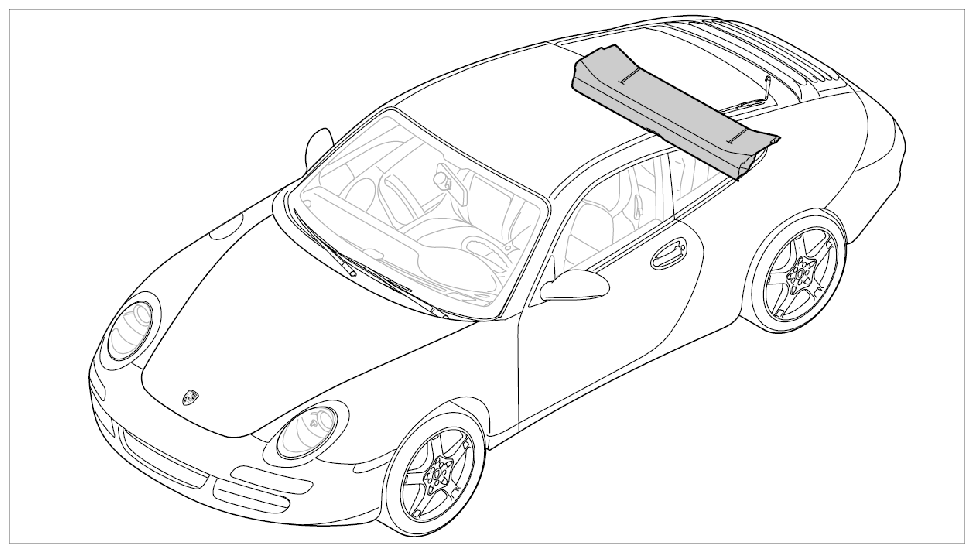

Fig 1: Identifying Rear Cover Installation Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull rear cover
-1-
up slightly
-Arrows A, B-
.
Fig 2: Removing Rear Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Guide rear cover
-1-
sideways out of the side trim panel and pull it forwards to remove it
-Arrow C-
.
