Removing Rear Wall Trim Panel

→ Wear personal protective gear.

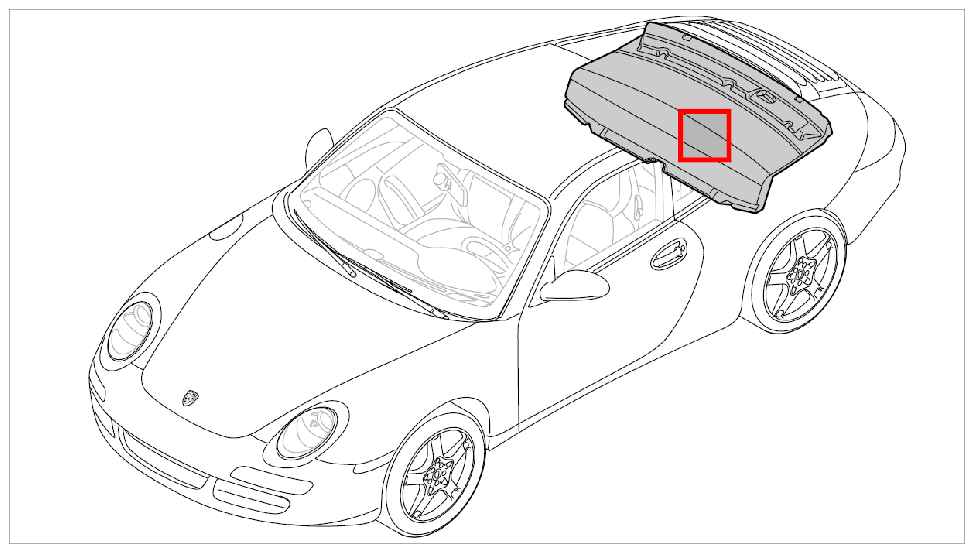

Fig 1: Identifying Rear Wall Trim Panel Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Unscrew fastening nuts -1-  .

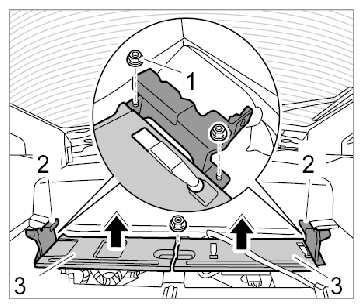

   Fig 2: Loosening Control Unit Holder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Only for vehicles with subwoofer.

2. Remove subwoofer holder -2-  at the left and right.
3. Lift control units holder -3-  up slightly.
4. Lift rear wall trim panel -1-  at the front -arrow A-  and pull it sideways out of the side trim panel on the right -arrow B-  .

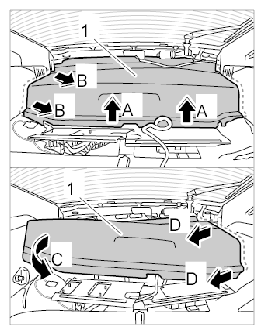

   Fig 3: Removing Rear Wall Trim Panel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Carefully pull rear wall trim panel -1-  forwards -arrow C-  and take it out of the side trim panel on the left -arrow D-  .
