Removing Luggage Compartment Cover

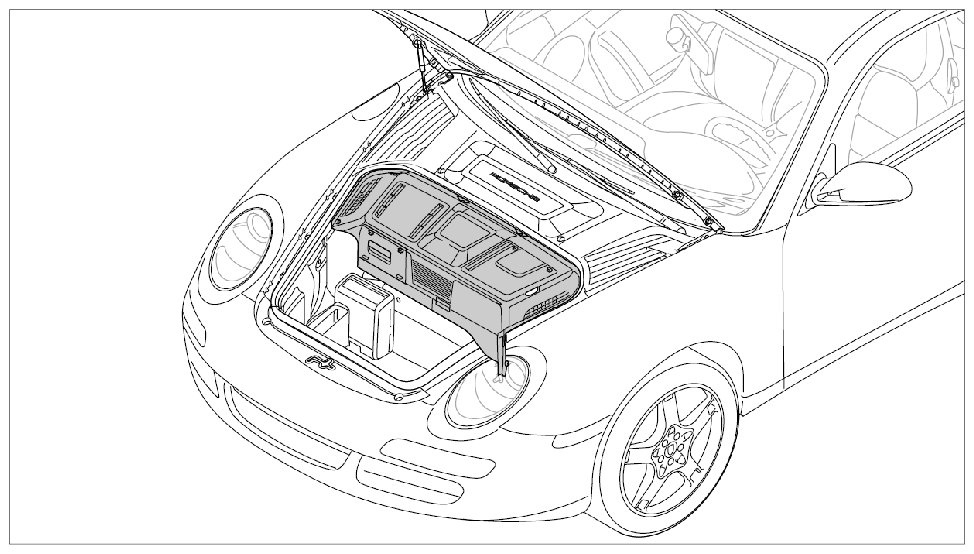

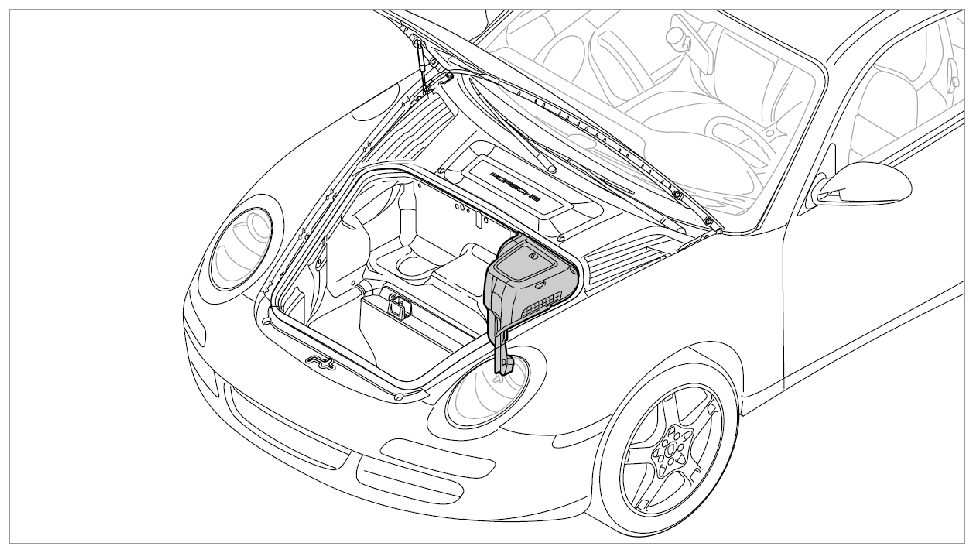

Fig 1: Identifying Luggage Compartment Cover Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew plastic nut -1- (-Arrow A- ) and loosen luggage-compartment lining on the left-hand side -2- (-Arrow B- ).

Fig 2: Loosening Luggage-Compartment Lining
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

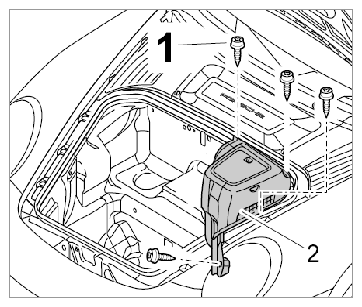

Unscrew fastening screws -1- from the luggage compartment cover -2- .

Fig 3: Loosening Luggage Compartment Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

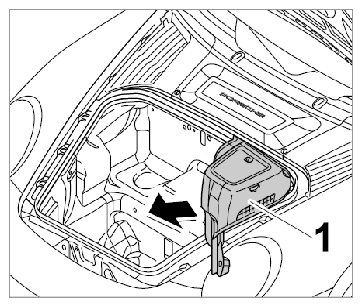

Remove luggage compartment cover -1- to the front.

Fig 4: Removing Luggage Compartment Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

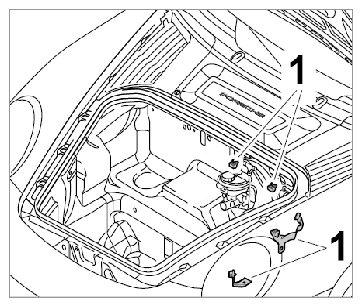

Check support -1- and replace if necessary.

Fig 5: Identifying Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 1: Identifying Luggage Compartment Cover Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew plastic nut -1- (-Arrow A- ) and loosen luggage-compartment lining on the left-hand side -2- (-Arrow B- ).

Fig 2: Loosening Luggage-Compartment Lining
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

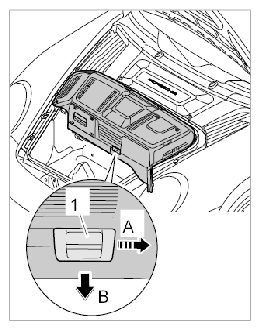

Move eyelet -1- to the right -Arrow A- and remove it -Arrow B- .

Fig 3: Removing Eyelet
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

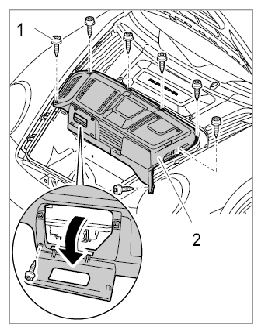

Open navigation unit lid -Arrow- .

Fig 4: Loosening Luggage Compartment Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws -1- on the luggage compartment cover -2- .

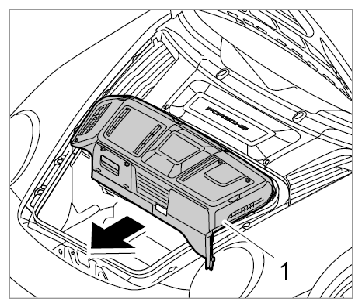

Remove luggage compartment cover -1- to the front.

Fig 5: Removing Luggage Compartment Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

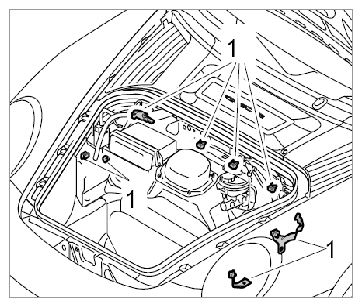

Check support -1- and replace if necessary.

Fig 6: Identifying Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
