Installing Luggage Compartment Cover

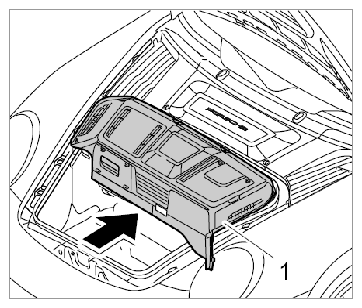

- Position luggage compartment cover -1-
in the luggage compartment.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

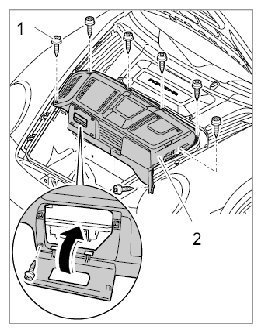

- Screw down luggage compartment cover -2-
using the fastening screws -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Close navigation unit lid -Arrow-
.

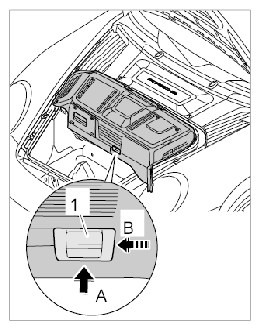

- Position eyelet -1-
on the luggage compartment cover -Arrow A-
and move it to the left -Arrow B-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Insert luggage-compartment lining -2-
(-Arrow A-
) and secure with the plastic nut -1-
(-Arrow B-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Check to ensure that lid seal is installed correctly.
