Removing Front Side Section Trim Panel (Passenger's Side)

  1. Partly loosen carpet -1-  at the bottom in the area of the A-pillar -Arrow A-  .

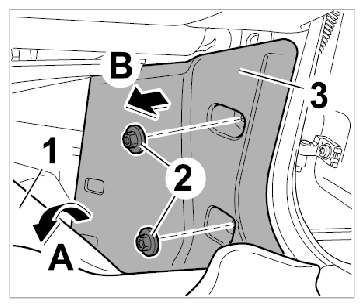

    Fig 1: Removing Front Side Section Trim Panel (Passenger Side)
    G09829126Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew plastic nuts -2-  and remove side section trim panel -3- -Arrow B-  .
