Removing Front Side Section Trim Panel (Driver's Side)

  1. Remove fuse carrier cover -1- -Arrow A-  .

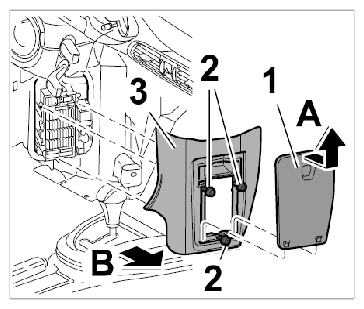

    Fig 1: Removing Front Side Section Trim Panel (Driver Side)
    G09829125Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew fastening screws -2-  and remove side section trim panel -3- -Arrow B-  .
