Installing Front Side Section Trim Panel (Passenger's Side)

  1. Position side section trim panel -3- -Arrow A-  and screw down with the plastic nuts -2-  .

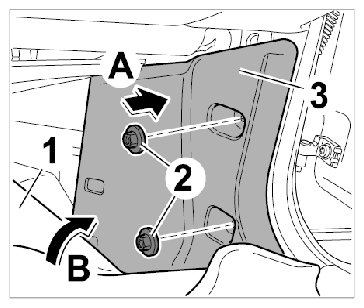

    Fig 1: Installing Front Side Section Trim Panel (Passenger Side)
    G09829127Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Fasten carpet -1-  at the bottom in the area of the A-pillar -Arrow B- Double-sided adhesive tape or suitable adhesive  .
