Installing Front Side Section Trim Panel (Driver's Side)

  1. Insert side section trim panel -3-  insert -Arrow A-  and screw down with the fastening screws -2-  . → Tightening torque: 2.0 ft. lb.

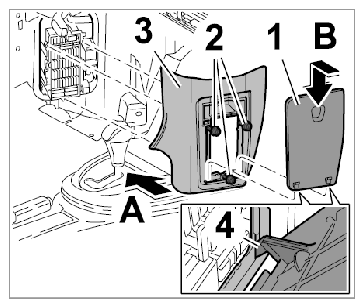

    Fig 1: Installing Front Side Section Trim Panel (Driver Side)
    G09829128Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Insert the fuse carrier cover -1-  with both clips -4-  into the lateral side section trim panel -2-  and clip in -Arrow B-  .
