Removing Trim Under The Dashboard On The Driver's Side: Notes

Fig 1: Overview Of Cover Under Instrument Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Unscrew the fastening screws -1-  and swivel the cover under the instrument panel on the driver's side -2-  downwards -arrow A-  .

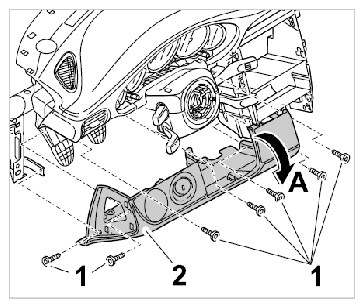

   Fig 2: Removing Lining

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
