Installing The Cover Under The Instrument Panel On The Passenger's Side

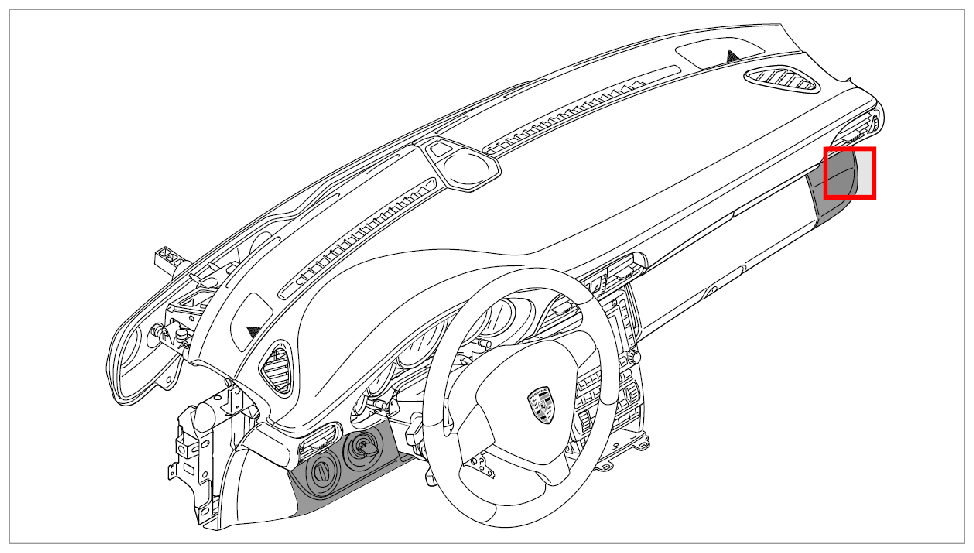

Fig 1: Overview Of Cover Under Instrument Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Insert the cover under the instrument panel on the passenger's side -1-  from above -arrow A-  .

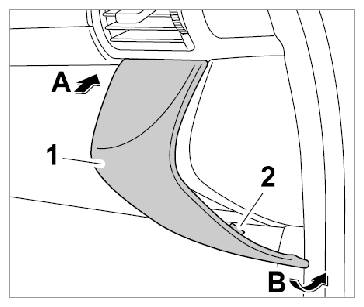

   Fig 2: Installing Lining

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Swivel cover under the instrument panel on the passenger's side -1-  downwards and press in -arrow B-  , until the retaining clips -2-  engage audibly.
